Olympus Stylus 770 SW Review

Review Date: May 21, 2007

Category: Point-and-Shoot

Olympus Stylus 770 SW


The Olympus Stylus 770 SW is a digital camera targeted to point-and-shoot photographers and replaces the Stylus 720 SW. It retains a 7.1 megapixel resolution on a 1/2.33 in. CCD image sensor, and a 38-114mm (35 mm equivalent) 3x internal optical zoom lens, with an aperture range of F3.5(W)–F5.0(T).

We find the overall image quality of the Olympus 770 SW to be good to very good, with low noise and images retaining most of the details at ISO 80.

3x Optical Zoom Range
Wide-angle 38mm Tele 114mm
Wide-angle 6.7mm
[38mm, 35mm equivalent]
Telephoto 20.1mm
[114mm, 35mm equivalent]

The Olympus 770 SW provides 3x optical zoom. In the above pictures, we show the coverage for 38mm and then 114mm (35mm equivalent).

Besides Auto mode and easy-to-use Scene Modes, the Olympus 770 SW also has Programmed AE (P) mode. There is no Program Shift available in P mode.

The camera also provides exposure compensation (no Auto Bracketing) and preset White Balance (no Custom/Manual WB). Shutter speed ranges from 1/2-1/1,000 sec. in all modes (4 sec. in Night scene mode). There are no other long shutter speeds.

Super Macro
Super Macro
Super Macro
9.1mm [51.8mm], P, Spot
1/4 sec., F4.0, +0.3EV, ISO 200

The Olympus 770 SW lens allows you to focus as close as 7cm (2.8 in.) at wide-angle in Super Macro mode. AF locks precisely and fast; without an AF Illuminator, AF locks well on subjects with good contrast but subjects with low contrast might be difficult to get a focus lock in low-light. A LED light can function as a faint light source that throws extra illumination on a close-up subject to facilitate AF lock [see below]. There is iESP AF that will focus on subjects that is not in the center of the frame, but you cannot manually select the AF Frame you want the camera to focus at.

S-Macro LED Mode
Super Macro LED
Super Macro with LED Illuminator used
9.1mm [51.8mm], P, Spot
1/4 sec., F4.0, +0.3EV, ISO 200

New is the Super Macro LED mode: pressing the shutter release button halfway throws the LED light onto the subject to act as additional (albeit faint) source of lighting.

There are two metering modes: ESP (Multi-Pattern) and Spot.

White Balance Indoors
AWB WB = Tungsten
AWB WB = Tungsten

As the above pictures show, the auto white balance is not quite accurate indoors under artificial light [using two ordinary tungsten bulbs]. There is no Custom/Manual WB, so I select Tungsten, which is accurate enough. Outdoors, under natural light, the AWB works very well.

ISO Comparisons

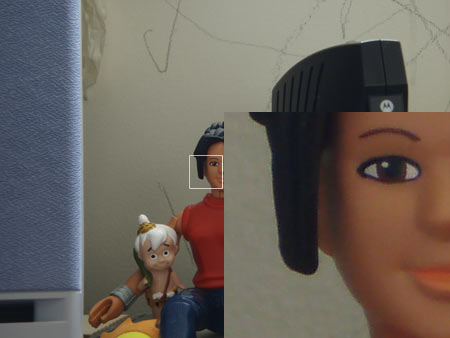

ISO 80
ISO 80
ISO 100 ISO 200
ISO 100 ISO 200
ISO 400 ISO 800
ISO 400 ISO 800
ISO 1600
ISO 1600

The pictures at ISO 80 and 100 are underexposed because the Olympus 770 SW does not have long shutter exposures. These shots are taken at ordinary room lighting (2 tungsten bulbs) and we have not used the flash or studio lights to give you a practical idea of what ISO you would need to use to start getting properly exposed pictures indoors.

You can set the ISO on the Olympus 770 SW from 80 to 1600 (ISO 2500 in Candle and Available Light scene modes at 1024x768 pixels only). The 100% crops above (area delimited by the white square) demonstrate that images at ISO 80 is quite clean with low noise. Above ISO 80 and ISO 100, there seems to be very aggressive noise reduction. At ISO 200 and 400, noise has been reduced but at the expense of image detail; they would be usable in small-sized 4x6 in. prints and for Web display. Above ISO 400, the presence of noise takes the form of coloured splotches.

Chromatic Aberrations
CA (Purple Fringing)

CA is not a problem in everyday shots. In the high contrast shot above, the area delimited by the red square at top right, and reproduced at 100% crop at bottom left, shows minimal purple fringing.

Long Shutter Speed
Long Shutter Speed
6.7mm [38mm], Night Scene, Pattern, 4 sec., F3.5, ISO Auto (125)
Auto WB, Macro ON, Self-Timer (10 sec.), Tripod Used, 100% Crop

The Olympus 770 SW allows the use of a long shutter speed of up to 4 sec. but only in Night scene mode. Generally, with CCD image sensors, noise usually becomes more prominent at slow shutter speeds.

To test this noise reduction algorithm, we take a low-light indoors shot using the Night scene mode.

Overall, good to very good image quality for a 7.1MP digital camera. Despite the availability of high ISOs, the Stylus 770 SW is not a low-light camera, but for its intended purpose of sunny beach, boating, and rough outdoors, the Olympus 770 SW can be expected to produce sharp pictures, good image detail and colours.

The pictures in the Olympus Stylus 770 SW Photo Gallery page provide a good sample of what the camera is capable of. I have provided samples at 800x600 pixels (compressed to Quality 60/100 in Photoshop Elements) as well as the original 3072×2304 pixels version.

You can safely assume that most macro shots and slow shutter speed shots required the use of a tripod. Any image that is adjusted for levels in Photoshop has "_adjusted" appended to the file name.

I have defaulted the image size to 800x600 pixels. For those who have their monitor resolution set to 1024x728 pixels, everything should snugly fit and you should not have to scroll to see the whole image. If your monitor is set to 800x600 pixels resolution, start the slide show and then scroll to the right to position the image within your screen width. Then, press F11 (if you are using Internet Explorer) to switch to full screen mode, and the image should fill your screen nicely. Press F11 again at any time to switch your monitor display back to normal mode.

To return to this page from the Photo Gallery, click on the animated graphics of the camera.

Please open and download the original size version only if you need to and only once to your hard drive -- and save me some precious bandwidth. Thanks!
