The Olympus Stylus 1030 SW is a digital
camera targeted to point-and-shoot photographers and replaces the Stylus 770 SW.
It has a 10.1 megapixel resolution on a 1/2.35-in.
CCD image sensor, and a new wide-angle 28-102mm (35 mm equivalent)
3.6x internal optical zoom lens, with an aperture
range of F3.5(W)–F5.1(T).
We find the overall image quality of the Olympus
1030 SW to be good, with low noise at ISO 80.
3.6x Optical Zoom
Range
Wide-angle
5.0mm
[28mm, 35mm equivalent]
Telephoto
18.2mm
[102mm, 35mm equivalent]
The Olympus 1030 SW provides 3.6x optical zoom.
In the above pictures, we show the coverage for
28mm and then 102mm (35mm equivalent). I like the new wide-angle coverage, much more useful in an underwater setting.
Besides Auto mode and easy-to-use Scene Modes,
the Olympus 1030 SW also has Programmed AE (P)
mode. A new cool In-camera Panorama mode allows you to capture and stitch a panorama picture from 3 pictures by just clicking and panning.
The camera provides exposure compensation
(but no Auto Bracketing) and preset White Balance
(but no Custom/Manual WB). Shadow Adjustment will automatically brighten shadow areas. This feature is however available only in Shooting Mode; it would be more useful if it could be applied to a picture when reviewing in Playback. Shutter speed ranges from
1/2-1/1,000 sec. in all modes (4 sec. in Night
scene mode).
Super Macro
Super Macro
6.5mm [36.6mm], P, Pattern
1/400 sec., F4.1, 0EV, ISO 80
The Olympus 1030 SW lens allows you to focus as
close as 2cm (0.8 in.) at wide-angle in Super
Macro mode. AF lock is fast and precise in good light; without an AF Illuminator, AF locks well on subjects with good contrast but subjects with low contrast might
be difficult to get a focus lock in low-light.
A LED Illuminator can function as a light source that throws extra illumination on a close-up subject to facilitate AF lock. There is iESP AF that will focus on subjects that
is not in the center of the frame, but you cannot
manually select the AF Frame you want the camera
to focus at. New is Face Detect that will detect and focus on a face.
There are two metering modes: ESP (Multi-Pattern)
and Spot.
White Balance
Indoors
AWB
WB = Tungsten
As the above pictures show, the auto white balance
is not accurate indoors under artificial
light [using two ordinary tungsten
bulbs]. There is no Custom/Manual WB, so I select
Tungsten. Outdoors,
under natural light, the AWB works very well.
ISO
Comparisons

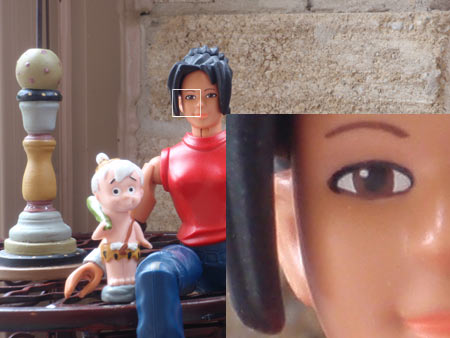

ISO 80
ISO 100
ISO 200
ISO 400
ISO 800
ISO 1600
We were not able to take our regular ISO test shots at low light level because the pictures at the low ISOs come out underexposed. So, the above pictures are taken in bright natural light.
You can set the ISO on the Olympus 1030 SW from
80 to 1600 (ISO 2500 in Candle and Available Light
scene modes at 3M pixels only). The 100%
crops above (area delimited by the white square)
demonstrate that images at ISO 80 and 100 are quite clean
with low noise. Noise starts to be slightly visible at ISO 200 and is usable up to ISO 400, though with some detail lost. At ISO 800, there
is very aggressive noise reduction; images would be usable in small-sized 4x6
in. prints and for Web display. Above ISO 800,
the presence of noise takes the form of colored
splotches.
Chromatic
Aberrations
CA is not a problem in everyday shots. In the
high contrast shot above, the area delimited by
the red square at top left, and reproduced at
100% crop at bottom left, shows minimal purple
fringing.
Long Shutter
Speed
5.0mm [28.0mm], Night Scene Mode,
ESP, 3.2 sec., F3.5, ISO Auto (100)
WB Tungsten, Self-Timer, Tripod
Used, 100% Crop
The Olympus 1030 SW allows the use of a long shutter
speed of up to 4 sec. but only in Night scene
mode. Generally, with CCD image sensors, noise
usually becomes more prominent at long shutter
speeds.
To test this noise reduction algorithm, we take
a low-light indoors shot using the Night scene
mode. It is quite difficult to obtain correct focus lock at this low level of light because there is no AF Illuminator. I could have turned on the LED Illuminator to throw extra light on the scene but then it would not be a low-light shot now, would it? Eventually I obtain a 3.2 sec. exposure at F3.5. The noise reduction is effective giving a smooth black background.
Despite the availability of high ISOs, it is important for potential buyers to understand clearly that the Stylus 1030 SW is not a low-light
camera. But if all you are looking for is a tough point-and-shoot digital camera that is not afraid of falls, bumps, dust and water -- and that is able to take decent shots in the bright outdoors -- then for its intended purpose of sunny
beach, boating, and rough outdoors, the Olympus
1030 SW is a perfect choice and will allow you to take pictures in situations no other digicams dare to.
The pictures in the Olympus Stylus 1030 SW
Photo Gallery page provide a good sample of
what the camera is capable of. I have provided
samples at 800x600 pixels (compressed to Quality
60/100 in Photoshop Elements) as well as the original
3648×2736 pixels version.
You can safely assume that most macro shots
and slow shutter speed shots required the use
of a tripod. Any image that is adjusted for levels
in Photoshop has "_adjusted" appended
to the file name.
I have defaulted the image size to 800x600 pixels.
For those who have their monitor resolution set
to 1024x728 pixels, everything should snugly fit
and you should not have to scroll to see the whole
image. If your monitor is set to 800x600 pixels
resolution, start the slide show and then scroll
to the right to position the image within your
screen width. Then, press F11 (if you are using
Internet Explorer) to switch to full screen mode,
and the image should fill your screen nicely.
Press F11 again at any time to switch your monitor
display back to normal mode.
To return to this page from the Photo Gallery,
click on the animated graphics of the camera.
Please open and download the original size version
only if you need to and only once
to your hard drive -- and save me some precious
bandwidth. Thanks!
