Olympus SP-560 UZ Review

Review Date: Dec 3, 2007

Category: Beginner to Serious Amateur

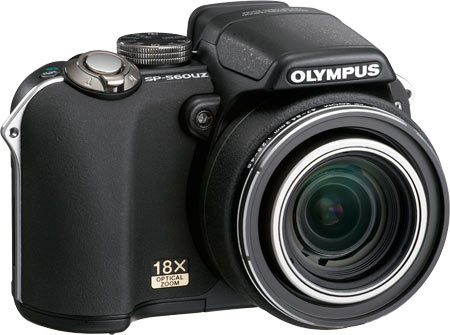

Olympus SP-560 UZ

IMAGE QUALITY

The Olympus SP-560 UZ is a digital camera targeted to serious amateur photographers. It has 8.0 effective megapixels resolution on a 1/2.35 in. image sensor. The Olympus lens is a 27-486 mm (35mm format equivalent) F2.8(W)-F4.5(T), 18x optical zoom with CCD-shift image stabilization.

We find the overall image quality of the Olympus SP-560 UZ to be very good to excellent at ISO 50 with good image detail.

18x Optical Zoom
Wide-angle 27 mm Tele 486 mm
Wide-angle 4.68mm
(27mm, 35mm equivalent)
Telephoto 84.24mm
(486mm, 35mm equivalent)

The Olympus SP-560 UZ has an impressive 18x wide-angle optical zoom lens with a CCD-shift Image Stabilization which helps to reduce camera shake. In the above pictures, we show the coverage for 27mm and 486mm. We love the 27mm wide-angle coverage as well as the incredible tele reach!

Super Macro
Macro
9.8mm [57.1mm], Manual, Pattern
2.5 sec., F5.0, ISO 50, Tripod used

The Olympus SP-560 UZ can focus in Super Macro mode to as close as 1 cm (0.4 in.). I recommend you use AF Mode = Area so you can position the AF frame to where you want the focus to lock (in this case, the eye).

AF hunts a bit (3 sec.) in low-light at Super Macro. Note that, as is most often the case with ultra zoom digital cameras, in low-light, it will be difficult to use Super Macro even with AF-assist since the AF assist light cannot reach the subject due to the long lens barrel. However, AF locks positively.

Auto White Balance Indoors
AWB One Touch WB
AWB One Touch WB

As the above two pictures show, the Auto White Balance (AWB) is not quite accurate indoors under artificial lighting (I have two energy-saving fluorescent light bulbs on the ceiling). Fortunately, the SP-560 UZ allows WB to also be set manually -- and the WB inconsistency previously observed in the SP-550 UZ has been fixed. AWB works very well in natural light.

ISO Comparisons
ISO 50
ISO 50

ISO 100 ISO 200
ISO 100 ISO 200
ISO 400 ISO 800
ISO 400 ISO 800
ISO 1600 ISO 3200
ISO 1600 ISO 3200
ISO 6400
ISO 6400

You can set the ISO on the Olympus SP-560 UZ from 50 to 6400. The 100% crops above (area delimited by the white square) demonstrate that noise at ISO 50 and ISO 100 is under control. Noise starts to be more visible at ISO 200 but is still usable. At ISO 400 to 6400, the presence of noise is clearly visible at full image size and with progressive loss of image detail.

Chromatic Aberrations
CA

CA is slightly present in some very high contrast everyday shots. In the above photo, the area delimited by the red square at top left, and reproduced at 100% crop at bottom right, shows minimal purple fringing.

Long Shutter Speed
Long Exposure
4.7mm [278mm], Manual mode, Pattern, 15 sec., F2.8 ISO 50
One Touch WB, Self-Timer (2 sec.), Tripod Used

The Olympus SP-560 UZ provides a maximum long shutter speed of 15 sec. (plus Bulb) in Manual mode. Here I'm checking out the presence of noise at long exposure (noise usually increases the longer the shutter is left open). As usual, I place Bamm-Bamm under my office desk, in the shadows, to obtain a long exposure of 15 sec. at F2.8. To eliminate camera shake, I place the camera on a tripod and use the 2 sec. self-timer. Noise reduction kicks in whenever the shutter speed is slower than 1/2 sec., and doubles the time required to store the shot. The SP-560 UZ LCD gains up very nicely in low-light and the display is smooth (no grain).

Overall, the Olympus SP-560 UZ has fixed the AF issues noticed on the SP-550UZ, image quality is very good to excellent at the low ISOs, and metering is right on. I love the possibility to customize the Stabilizer button, which I set to AE lock. This way I can point to the sky, press the button to lock the exposure (only), then recompose, press the shutter release button to lock focus and take the picture. No more burnt highlights in the sky.

The pictures in the Olympus SP-560 UZ Photo Gallery page provide a good sample of what the camera is capable of. I have provided samples at 800x600 pixels (compressed to Quality 60/100 in Photoshop Elements) as well as the 3264 x 2448 pixels original size (click on the image for the original version).

You can safely assume that most macro shots and slow shutter speed shots required the use of a tripod. Any image that is adjusted for levels in Photoshop has "_adjusted" appended to the file name.

I have defaulted the image size to 800x600 pixels. For those who have their monitor resolution set to 1024x728 pixels, everything should snugly fit and you should not have to scroll to see the whole image. If your monitor is set to 800x600 pixels resolution, start the slide show and then scroll to the right to position the image within your screen width. Then, press F11 (if you are using Internet Explorer) to switch to full screen mode, and the image should fill your screen nicely. Press F11 again at any time to switch your monitor display back to normal mode.

To return to this page from the Photo Gallery, click on the animated graphics of the camera.

Please open and download the original size version only if you need to and only once to your hard drive -- and save me some precious bandwidth. Thanks!
