Like the D40 which it replaces, the D40x provides
outstanding image quality on a large APS-sized
image sensor.
 |

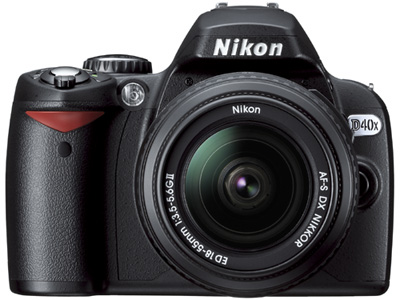

Nikon
D40x |
QuickFact™
Sheet
|
|
| |
 US | CAN | UK |
|
|
| |
Type
of Camera |
Single-lens
reflex digital camera |
|
| |
Effective
Pixels |
10.2
million |
|
| |
Sensor |
RGB CCD, 23.6 x 15.8 mm; total pixels: 10.75 million, Nikon DX format |
|
| |
Size |
3,872 x 2,592 [L], 2,896 x 1,944 [M], 1,936 x 1,296 [S] |
|
| |
ISO Sensitivity |
100 to 1600 in
steps of 1 EV with additional setting one
step over 1600 |
|
| |
Storage
Media |
SD memory card, SDHC compliant
|
|
| |
Storage
System |
Compressed NEF (RAW): 12-bit compression; JPEG: JPEG baseline compliant
|
|
| |
File
System |
Exif 2.21, Compliant DCF 2.0 and DPOF
|
|
| |
White Balance |
Auto (TTL white balance with 420-pixel RGB sensor); six manual modes with fine tuning and preset white balance |
|
| |
LCD
Monitor |
2.5-inch, 230,000-dot, low-temperature polysilicon TFT LCD with 170-degree wide-angle viewing and brightness adjustment
|
|
| |
Playback Menu |
1 frame; thumbnail (4 or 9 segments); magnifying playback; slide show; histogram indication; highlight point display; auto image rotation |
|
| |
Delete Function |
Card format, all frames delete, selected frames delete |
|
| |
Video
Output |
NTSC or PAL
|
|
| |
Text
Input |
Up to 36 characters of alphanumeric text input available with LCD monitor and multi selector; stored in Exif header
|
|
| |
Compatible Lenses*1
*1. Excluding lenses for F3AF
|
Nikon F mount with AF coupling and AF contacts Type G or D AF Nikkor: 1) AF-S, AF-I: All functions supported; 2) Other Type G or D AF Nikkor: All functions supported except autofocus; 3) PC Micro-Nikkor 85mm f/2.8D: Can only be used in mode M; all other functions supported except autofocus; 4) Other AF Nikkor*¹/AI-P Nikkor: All functions supported except autofocus and 3D Color Matrix Metering II; 5) Non-CPU: Can be used in mode M, but exposure meter does not function; electronic range finder can be used if maximum aperture is f/5.6 or faster; 6) IX Nikkor lenses cannot be used
*¹ Excluding lenses for F3AF
|
|
| |
Picture Angle |
Equivalent in 35mm [135] format is approx. 1.5 times lens focal length |
|
| |
Viewfinder |
Fixed-eyelevel penta-Dach mirror type; built-in diopter adjustment (-1.7 to +0.5m-1)
|
|
| |
Eyepoint |
18mm (-1.0 m-1) |
|
| |
Focusing
Screen |
Type B BriteView Clear Matte screen Mark V with superimposed focus brackets
|
|
| |
Viewfinder
Frame Coverage |
Approximately 95% (vertical/horizontal)
|
|
| |
Viewfinder
Magnification |
Approx. 0.8x with 50mm lens at infinity; -1.0 m-1
|
|
| |
Viewfinder
Information |
Focus indications, AE/FV lock indicator, shutter speed, aperture value, exposure/exposure compensation indicator, exposure mode, flash output level compensation, exposure compensation, number of remaining exposures, flash-ready indicator
|
|
| |
Auto Focus |
TTL phase detection by Nikon Multi-CAM530 autofocus module with AF-assist (range approximately 0.5-3.0m/1ft. 8in.-9ft. 10in.); Detection range: -1 to +19 EV (ISO 100 at 20 degrees C/68 degrees F)
|
|
| |
Lens Servo |
1) Autofocus (AF): Instant single-servo AF (AF-S); continuous servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking automatically activated according to subject status; 2) Manual focus (M)
|
|
| |
Focus Area |
Can be selected from 3 focus areas
|
|
| |
AF Area Modes |
1) Single Area AF; 2) Dynamic Area AF; 3) Dynamic Area AF with Closest Subject Priority
|
|
| |
Focus Lock |
Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing AE-L/AF-L button |
|
| |
Exposure
Metering System |
TTL full-aperture exposure metering system: 1) 3D Color Matrix Metering II (type G and D lenses); Color Matrix Metering II (other CPU lenses); metering performed by 420-segment RGB sensor; 2) Center-weighted: Weight of 75% given to 8mm circle in center of frame; 3) Spot: Meters 3.5mm circle (about 2.5% of frame) centered on active focus area |
|
| |
Exposure
Compensation |
plus or minus 5 EV in increments of 1/3 EV |
|
| |
Exposure
Metering Range |
1) 0 to 20 EV (3D Color Matrix or center-weighted metering); 2) 2 to 20 EV (spot metering) |
|
| |
Exposure
Modes |
Digital Vari-program (Auto, Auto [Flash Off], Portrait, Landscape, Child, Sports, Close Up, Night Portrait), Programmed Auto (P) with flexible program; Shutter-Priority Auto (S); Aperture Priority Auto (A); Manual (M) |
|
| |
Exposure
Lock |
Exposure
locked at detected value with AE-L/AF-L button |
|
| |
Shooting Modes |
1) Single frame shooting mode; 2) Continuous shooting mode: approx. 2.5 frames per second*; 3) Self-timer mode; 4) Delayed remote mode: 2 s. delay; 5) Quick-response remote mode
*Approx. 1.7 frames per second with Noise Reduction turned on and approx. 1 frame per second with ISO HI1
|
|
| |
Shutter |
Combined mechanical and CCD electronic shutter, 30 to 1/4000 sec. in steps of 1/3, bulb |
|
| |
Sync
Contact |
X-contact only; flash synchronization at up to 1/200 sec. |
|
| |
Flash Control |
1) TTL: TTL flash control by 420-segment RGB sensor, i-TTL balanced fill-flash for digital SLR and standard i-TTL fill-flash for digital SLR available when CPU lens is used with built-in flash, SB-800, SB-600 and T041; 2) Auto aperture: Available with SB-800 with CPU lens; 3) Non-TTL Auto: Available with Speedlights such as SB-800, 80DX, 28DX, 28, 27 and 22s; 4) Range-priority manual available with SB-800 |
|
| |
Flash
Sync Modes |
Auto, Portrait, Child and Close Up modes: 1) Auto, auto with red-eye reduction; fill-flash and red-eye reduction available with optional Speedlight; 2) Night portrait mode: Auto, auto slow sync, auto slow sync with red-eye reduction; slow sync and slow sync with red-eye reduction available with optional Speedlight; 3) Landscape, Sport mode: Fill-flash and red-eye reduction available with optional Speedlight; 4) P, A: Fill flash, rear-curtain with slow sync, slow sync, slow sync with red-eye reduction, red-eye reduction; 5) S, M: Fill flash, rear-curtain sync, red-eye reduction |
|
| |
Built-in
Flash |
Auto, Portrait, Child, Close Up, Night Portrait mode: Auto flash with auto pop-up P/S/A/M: Manual pop-up with button release Guide number (ISO 200/ISO 100, m [ft.]): approx.17 [55]/12 [39] (manual full 18 [59]/13 [42] |
|
| |
Flash
Compensation |
-3 to +1 EV in increments of 1/3 EV
|
|
| |
Accessory
Shoe |
Standard ISO hot-shoe contact with sync, signal and ground contacts and safety lock |
|
| |
Self-Timer |
Electronically controlled timer with duration of 2, 5, 10 or 20 seconds |
|
| |
Remote
Control |
Via optional ML-L3 Wireless Remote Control |
|
| |
Power
Source |
One Rechargeable Li-ion Battery EN-EL9; charging voltage (MH-23 quick charger): 7.4V DC, EH-5 AC Adapter (available separately; requires optional EP-5 AC Adapter Connector) |
|
| |
Tripod Socket |
1/4 in. (ISO1222)
|
|
| |
Included Accessories
*Supplied accessories may differ depending
on country or area.
|
EN-EL9 Rechargeable Li-ion Battery, MH-23 Quick Charger, UC-E4 USB Cable, PictureProject, DK-16 Rubber Eyecup, Camera Strap, BF-1A Body Cap, DK-5 Eyepiece Cap, BS-1 Accessory Shoe Cap.
*Supplied accessories may differ depending on country or area. |
|
| |
Optional
Accessories |
ML-L3 Wireless Remote Control, Capture NX, Camera Control Pro, EH-5 AC Adapter, EP-5 AC Adapter Connector, EG-D100Video Cable, Semi Soft-Case CF-DC1, Speedlight SB-800/SB-600/SB-400/R1C1 |
|
| |
Dimensions (W
x H x D) |
Approx. 126 x 64 x 94mm /
5.0 x 2.5 x 3.7 in.
|
|
| |
Weight (Camera
body only) |
Approx. 495g (1lb. 1oz.) without battery,
memory card or body cap
|
|
| |
MSRP |
Body only: US $729.95 / CDN $629.95
D40 Kit
with AF-S DX Nikkor 18-55mm f/3.5-5.6 G
ED II Lens: US $799.95 / CDN $729.95
D40 Kit
with AF-S DX NIKKOR 18-135mm f3.5-5.6 G IF ED Lens: CDN $939.95 |
|
