It improves on the D100 with the tough magnesium
alloy body, higher MP resolution, lower starting
ISO of 100, a faster shutter speed of 1/8,000
sec., fast 5fps Continuous Shooting, a larger
2.5 in LCD monitor, USB 2.0 High Speed, and availability
of GPS and Wireless.

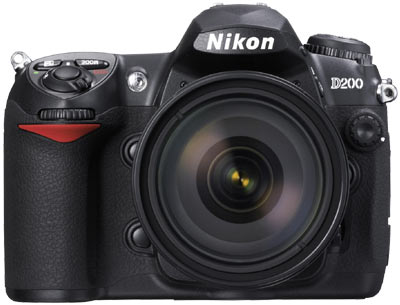

| Nikon
D200 DSLR |
QuickFact
Sheet
|
 |
 |
| Type of
Camera |
Single-lens
reflex digital camera |
| Effective Pixels |
10.2 million |
| Image
Sensor |
RGB CCD, 23.6 x 15.8mm; total
pixels: 10.92 million |
| Image Size (pixels) |
3,872 x 2,592 [L], 2,896 x 1,944
[M], 1,936 x 1,296 [S] |
| Storage
Media |
CompactFlash(TM)
(CF) Card (Type I and II ) and Microdrive(TM) |
| Sensitivity |
100 to 1600 (ISO equivalent)
in steps of 1/3, 1/2 or 1 EV with additional
settings up to 1 EV over 1600 |
| File System |
Exif 2.21,
Compliant DCF 2.0 and DPOF |
| Storage
System |
Compressed
or uncompressed NEF (RAW): 12-bit compression,
JPEG: JPEG baseline-compliant |
| White Balance |
Auto (TTL white balance with
1,005-pixel RGB sensor), six manual modes
with fine-tuning, color temperature setting,
preset white balance, white balance bracketing
possible (2 to 9 frames in increments of 1,
2 or 3) |
| LCD Monitor |
2.5-in., 230,000-dot,
low-temperature polysilicon TFT LCD with brightness
adjustment |
| Playback
Function |
Full frame
2) Thumbnail (4 or 9 segments) 3) Zoom 4)
Slideshow 5) RGB histogram indication 6) Shooting
data 7) Highlight point display 8) Auto image
rotation |
| Interface |
Can be selected
from NTSC and PAL |
| Picture
Angle |
35mm [135]
format is approx. 1.5 times lens focal length |
| Text Input |
Up to 36 characters
of alphanumeric text input available with
LCD monitor and multi-selector; stored in
Exif header |
| Compatible Lenses |
All AF-DX, AF-D, AF-G, AF-I,
AF-S, and AF VR Nikkor lenses provide full
AF and metering operation. AI-P lenses provide
manual focus w/ electronic rangefinder and
full metering operation. AI lenses provide
manual focus w/ electronic rangefinder, Aperture
Priority and Manual exposure mode, C/W and
Spot metering operation. |
| Viewfinder |
Fixed eye-level
Pentaprism type; built-in diopter adjustment
(-2.0 to +1.0m-1) |
| Eyepoint |
19.5mm (-1.0m-1) |
| Focusing
Screen |
Type-B BriteView
Clear Matte screen Mark II with superimposed
focus brackets and On-Demand grid lines |
| Viewfinder
Frame Coverage |
Approx. 95%
(vertical and horizontal) |
| Viewfinder
Magnification |
Approx. 0.94x
with 50mm lens at infinity; -1.0m-1 |
| Viewfinder
Information |
Focus indications,
Metering system, AE/FV lock indicator, Flash
sync indicator, Shutter speed, Aperture value,
Exposure/Exposure compensation indicator,
ISO sensitivity, Exposure mode, Flash output
level compensation, Exposure compensation,
Number of remaining exposures |
| Autofocus |
TTL phase detection by Nikon
Multi-CAM 1000 autofocus module with AF-assist
illuminator (approx. 0.5m to 3.0m) |
| Lens Servo |
Instant single-servo AF (S);
continuous-servo AF (C); manual (M); predictive
focus tracking automatically activated according
to subject status in continuous-servo AF |
| AF Area Mode |
1) Single Area AF 2) Dynamic
Area AF 3) Group Dynamic 4) Dynamic area AF
with closest subject priority |
| Focus Area |
Normal: 11 areas; single area
or group can be selected; Wide: focus area
can be selected from 7 areas |
| Focus Lock |
Focus can be locked by pressing
shutter-release button halfway (single-servo
AF) or by pressing AE-L/AF-L button |
| Exposure
Metering System |
Three-mode
through-the-lens (TTL) exposure metering.
1) 3D Color Matrix Metering II (type G and
D lenses); color matrix metering II (other
CPU lenses); color matrix metering available
with non-CPU lenses if user provides lens
data; metering performed by 1,005-segment
RGB sensor. 2) Center-weighted: Weight of
75% given to 6, 8, 10, or 13mm dia. circle
in center of frame. 3) Spot: Meters 3mm dia.
circle (about 2.0% of frame) centered on active
focus area (on center focus area when non-CPU
lens is used). |
| Exposure
Metering Range |
(ISO 100,
f/1.4 lens, 68 degrees F): 1) EV 0 to 20 (3D
Color Matrix or center-weighted metering)2)
EV 2 to 20 (spot metering) (ISO 100 equivalent,
f/1.4 lens, 20°C) |
| Exposure
Meter Coupling |
Combined CPU
and AI |
| Exposure
Mode |
Programmed
Auto [P] with flexible program; Shutter-Priority
Auto [S]; Aperture Priority Auto [A]; Manual
[M] |
| Exposure
Compensation |
Plus or minus
5 EV in increments of 1/3, 1/2 or 1 EV |
| Auto Exposure
Lock |
Luminosity
locked at detected value with AE-L/AF-L button |
| Auto Exposure
Bracketing |
2 to 9 exposures
in increments of 1, 2, or 3 |
| Shooting
Modes |
1) Single
frame shooting mode 2) Continuous low speed
(CL) shooting mode: 1 to 4 frames per second
3) Continuous high-speed shooting mode: 5
frames per second 4) Self-timer shooting mode
5) Mirror-up mode |
| Shutter |
Electronically-controlled
vertical-travel focal plane shutter, 30 to
1/8,000 sec. in steps of 1/3, 1/2 or 1 EV,
bulb |
| Sync Contact |
X-contact only; flash synchronization
at up to 1/250 sec. |
| Flash Control |
1) TTL: TTL flash control by
1,005-pixel RGB sensor; Built-in Speedlight:
i-TTL balanced fill-flash or standard i-TTL
flash (spot metering or mode dial set to [M])
SB-800 or 600: i-TTL balanced fill-flash for
digital SLR and standard i-TTL flash for digital
SLR. 2) Auto aperture: Available with SB-800
with CPU lens. 3) Non-TTL Auto: Available
with Speedlights such as SB-800, 80DX, 28DX,
28, 27, and 22. 4) Range-priority manual;
available with SB-800 |
| Flash Sync Mode |
1) Front-curtain Sync (normal
sync), 2) Red-eye Reduction, 3) Red-eye Reduction
with Slow Sync, 4) Slow Sync, 5) Rear-curtain
Sync |
| Built-in Speedlight |
Manual pop-up with button release
Guide number (ISO 100, m): approx. 12 (manual
13) |
| Flash compensation |
-3 to +1 EV in increments of
1/3 or 1/2 EV |
| Accessory Shoe |
Standard ISO hot-shoe contact
with safety lock provided |
| Sync Terminal |
ISO 519 standard terminal |
| Self-timer |
Electronically
controlled timer with 2 to 20 seconds duration |
| Depth of
Field Preview |
When CPU lens
is attached, lens aperture can be stopped
down to value selected by user (A and M mode)
or value selected by camera (P and S mode) |
| Remote
Control |
Via 10-pin
Remote Cord MC-22/30/36 (optional) or Wireless
Remote Control WT-3 (optional) |
| GPS |
NMEA 0183
(Ver. 2.01) interface standard supported with
9-pin D-sub cable (optional) and GPS Cable
MC-35 (optional) |
| Power Source |
One Rechargeable Li-ion Battery
EN-EL3e, MB-D200 battery pack (optional) with
one or two rechargeable Nikon EN-EL3e Li-ion
batteries or six AA alkaline (LR6), NiMH (HR6),
lithium (FR6) batteries, or 2R6 nickel-manganese
AA batteries, AC Adapter EH-6 (optional) |
| Tripod
Socket |
1/4 in. (ISO) |
| Supplied Accessories* |
Rechargeable Li-ion Battery
EN-EL3e, Quick Charger MH-18a, Video Cable,
USB Cable UC-E4, Strap, Body cap, Eyepiece
Cap DK-5, Rubber Eyecup DK-21M, LCD monitor
cover BM-6, PictureProject CD-ROM |
| Optional
Accessories |
Wireless Transmitter
WT-3, AC Adapter EH-6, Speedlight SB-800/SB-600/SB-R200,
Nikon Capture 4 (Ver. 4.4), CompactFlash card |
| Dimensions (W x H x D) |
Approx. 147 x 113 x 74mm |
| Weight |
Approx. 830g without battery,
memory card, body cap, or monitor cover |
| MSRP |
US $1699.99
Body only: CDN $1,499.95
|
* Supplied accessories may differ
in each country or area.
